ElGohary Turning Algo#

Warning

There are some issues with matching the results of the ElGohary algorithm to the reference system. The performance, we are observing here is far below the expected performance. We are investigating this currently, but until then, we recommend to do your own testing and validation before using this algorithm in production.

This example shows how to use the ElGohary turning algorithm. It uses the angular velocity around the SI axis of a lower back IMU to detect turns.

Loading data#

Note

More infos about data loading can be found in the data loading example.

We load example data from the lab dataset together with the Stereophoto reference system. We will use the Stereophoto output for turns (“td”) as ground truth, as it is the most accurate reference system available in the dataset. Still, the turn detection might not be fully reliable. Note, that the INDIP system, also uses just a single lower back IMU to calculate the turns. Hence, it can not really be considered a reference system, in this context.

from mobgap.data import LabExampleDataset

example_data = LabExampleDataset(
    reference_system="Stereophoto", reference_para_level="wb"
)

single_test = example_data.get_subset(
    cohort="HA", participant_id="001", test="Test11", trial="Trial1"
)
imu_data = single_test.data_ss
reference_wbs = single_test.reference_parameters_.wb_list

sampling_rate_hz = single_test.sampling_rate_hz

Note, that the reference turns don’t use the 45 deg lower cutoff for turns by default. Hence, we apply this here for consistency.

ref_turns = single_test.reference_parameters_.turn_parameters.query(
    "angle_deg.abs() >= 45"
)

Applying the algorithm#

In a typical pipeline, we first identify the gait sequences and then apply the turning detection algorithm to each gait sequence individually. However, the turning algorithm can also be applied to the whole recording at once. Though, it might produce false positives, in “non-walking” segments.

Below we show both approaches, starting with the whole recording. This allows us to visualize how the algorithm works.

start end duration_s angle_deg direction
turn_id
0 4200 4504 3.04 -53.335724 right
1 4532 4780 2.48 77.140975 left
2 7759 8130 3.71 46.520907 left
3 12229 12731 5.02 -64.228741 right
4 13367 13624 2.57 69.399799 left


We can also extract additional debug information from the algorithm. The yaw-angle gives us the estimated orientation of the lower back in the axis of the turning. The raw_turn_list_ gives us the raw detected turns, before filtering them based on duration and angle.

start end duration_s angle_deg direction center
turn_id
0 2774 2956 1.82 26.659898 left 2869
1 3756 3941 1.85 -34.859440 right 3852
2 3973 4164 1.91 32.668850 left 4079
3 4200 4504 3.04 -53.335724 right 4373
4 4532 4780 2.48 77.140975 left 4658
5 7759 8130 3.71 46.520907 left 7994
6 8408 8622 2.14 -27.005392 right 8505
7 9346 9578 2.32 42.708962 left 9449
8 9833 10074 2.41 -40.287470 right 9956
9 12229 12731 5.02 -64.228741 right 12315
10 12229 12731 5.02 -64.228741 right 12509
11 13367 13624 2.57 69.399799 left 13513


To better understand, how things work, we can plot all the results together.

We can see that after filtering the signal, the algorithm identifies peaks in the signal that are higher in absolute values than the min_peak_angle_velocity_dps (dotted lines). Around these “turn-centers” the turn is defined as the region until the signal drops below the lower_threshold_velocity_dps (dashed lines).

We then look at the duration and the angle of the detected turns and filter them based on the provided thresholds. We can see that at the end, only a small number of turns remain. Most of the raw turns are filtered out by the allowed_turn_angle_deg threshold, which is set to 45 degrees.

import matplotlib.pyplot as plt


def plot_turns(algo_with_results: TdElGohary):
    fig, axs = plt.subplots(3, 1, figsize=(10, 6), sharex=True)
    axs[0].set_ylabel("gyr_z [dps]")
    if algo_with_results.global_frame_data_ is None:
        data = algo_with_results.data
        axs[0].set_title("Raw gyr_z data")
    else:
        data = algo_with_results.global_frame_data_
        axs[0].set_title("Raw gyr_z data (global frame)")
    data.reset_index(drop=True).plot(y="gyr_z", ax=axs[0])

    axs[1].set_title("Filtered IMU signal with raw turns and thresholds.")
    axs[1].set_ylabel("filtered gyr_z [dps]")
    filtered_data = (
        algo_with_results.smoothing_filter.clone()
        .filter(imu_data["gyr_z"], sampling_rate_hz=sampling_rate_hz)
        .filtered_data_
    )
    filtered_data.reset_index(drop=True).plot(ax=axs[1])

    raw_turn_list = algo_with_results.raw_turn_list_
    # Plot turn centeres
    axs[1].plot(
        raw_turn_list["center"],
        filtered_data.iloc[raw_turn_list["center"]],
        "o",
    )
    # Plot start and end of turns as regions
    for i, row in raw_turn_list.iterrows():
        axs[1].axvspan(
            row["start"],
            row["end"],
            alpha=0.5,
            color="gray" if row["direction"] == "left" else "blue",
        )

    # Draw dashed line at +/- velocity_dps
    axs[1].axhline(
        algo_with_results.lower_threshold_velocity_dps,
        color="green",
        linestyle="--",
        label="velocity_dps",
    )
    axs[1].axhline(
        -algo_with_results.lower_threshold_velocity_dps,
        color="gray",
        linestyle="--",
    )

    # Draw dottet line at +/- height
    axs[1].axhline(
        algo_with_results.min_peak_angle_velocity_dps,
        color="green",
        linestyle=":",
        label="height",
    )
    axs[1].axhline(
        -algo_with_results.min_peak_angle_velocity_dps,
        color="gray",
        linestyle=":",
    )

    axs[2].set_title("Yaw angle with final turns")
    axs[2].set_ylabel("Yaw angle [deg]")
    axs[2].set_xlabel("samples [#]")
    algo_with_results.yaw_angle_.reset_index(drop=True).plot(ax=axs[2])

    # Plot start and end of turns as regions
    for i, row in algo_with_results.turn_list_.iterrows():
        axs[2].axvspan(
            row["start"],
            row["end"],
            alpha=0.5,
            color="gray" if row["direction"] == "left" else "blue",
        )

    fig.show()


plot_turns(turning_detector)

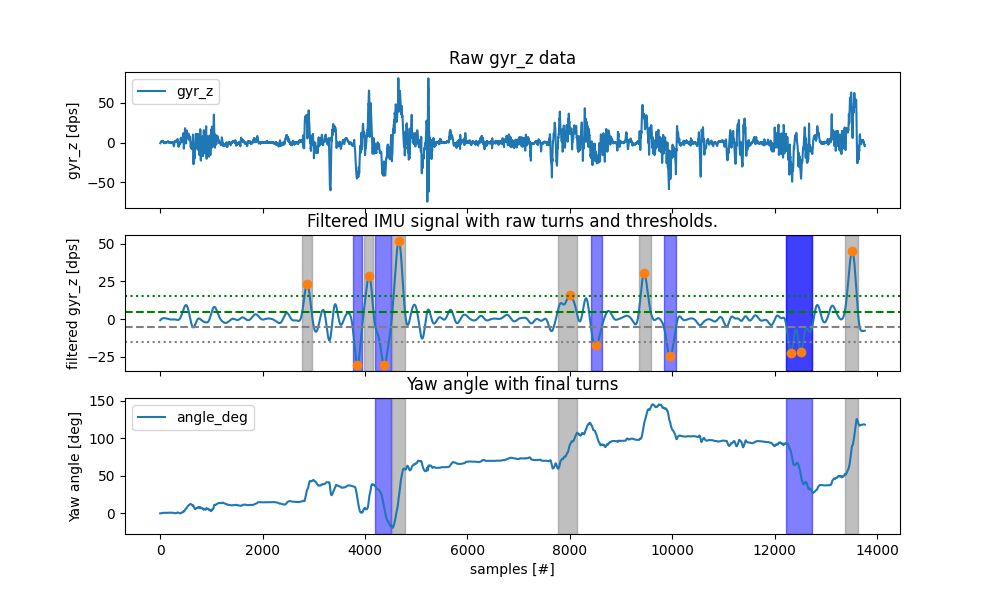

Raw gyr_z data, Filtered IMU signal with raw turns and thresholds., Yaw angle with final turns

Now that we understand how the algorithm works, we apply it in the context of a typical pipeline using the GsIterator in combination with the reference WBs. This allows us to compare the results to the reference system.

start end duration_s angle_deg direction
wb_id turn_id
1 0 4200 4504 3.04 -53.335724 right
1 4532 4780 2.48 77.140975 left
2 0 7777 8129 3.52 46.453241 left


We can compare this to the reference turns.

start end duration_s angle_deg direction
wb_id turn_id
1 0 3833 3935 1.01 81.339600 left
1 3934 4172 2.37 -122.848641 right
2 4277 4452 1.74 111.712823 left
3 4534 4789 2.54 -178.884837 right
2 0 7777 8204 4.26 -153.358653 right
1 8405 8552 1.46 68.104292 left
3 0 9381 9714 3.32 -166.100777 right
5 0 13108 13245 1.36 -52.132837 right
1 13274 13443 1.68 -61.836477 right


We can directly observe that the algorithm detects significantly fewer turns than the reference system. And even the turns that are detected, don’t really match the reference system.

It remains unclear, why the algorithm performs so poorly in this case.

Working in the global coordinate system#

The original ElGohary paper uses on-board sensor fusion to track the orientation of the sensor. This information is used to transform all sensor data into the global coordinate system. This should make the identification of the SI axis more robust.

We did not use this approach within Mobilise-D, to avoid introducing an additional source of error through a sensor fusion algorithm. However, the result of the algorithms are significantly influenced by that decision. Below we show two approached on how you could use the algorithm with a global frame estimation.

1. Using the internal global frame estimation#

For this we pass an instance of the MadgwickAHRS algorithm to estimate the global orientation of the sensor to the algorithm.

from gaitmap.trajectory_reconstruction import MadgwickAHRS

orientation_estimator = MadgwickAHRS()

Now we can apply the algorithm again. We are going to apply it to the entire recording to show the step-by-step process.

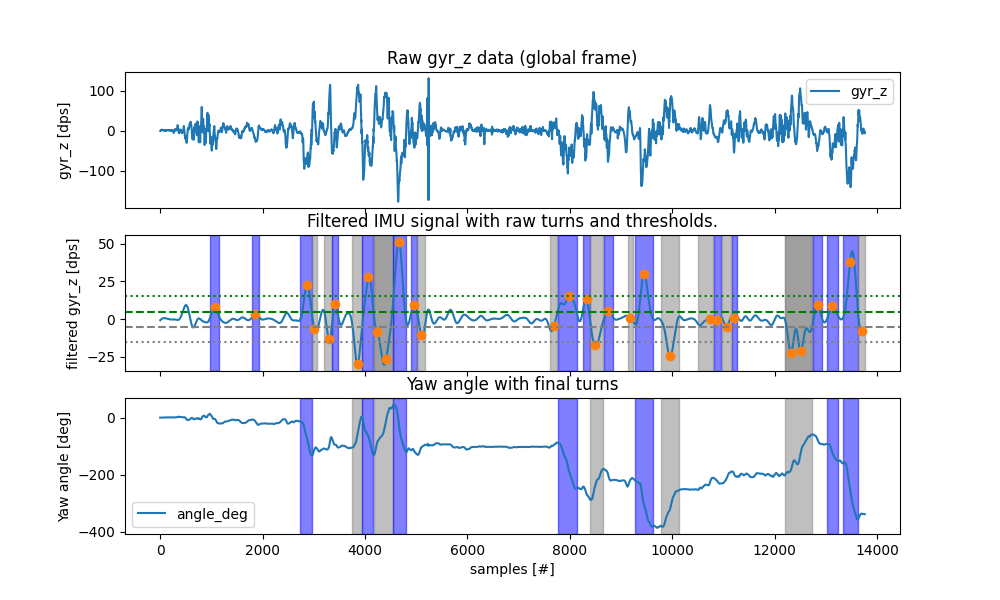

Raw gyr_z data (global frame), Filtered IMU signal with raw turns and thresholds., Yaw angle with final turns

Based on the plotted results, we can see that the algorithm not finds significantly more turns.

However, when we apply the algorithm per-gs (as shown below), we again only get a small number of turns. The reason for that is, that the global frame estimation is not perfect and requires some time to converge when applied to data. Hence, the applying it to each GS individually might work less good. Results could be improved, by tuning the initial orientation of the global frame estimation.

start end duration_s angle_deg direction
wb_id turn_id
1 0 4200 4504 3.04 -53.335724 right
1 4532 4780 2.48 77.140975 left
2 0 7777 8129 3.52 46.453241 left


Alternatively, we could also use the global frame estimation to transform the data into the global frame before applying the algorithm.

2. Transforming the data into the global frame#

For this, we first estimate the global frame for the entire recording.

start end duration_s angle_deg direction
wb_id turn_id
1 0 3833 3933 1.00 80.306769 left
1 3939 4162 2.23 -132.738788 right
2 4169 4545 3.76 172.303622 left
3 4555 4803 2.48 -167.290717 right
2 0 7777 8137 3.60 -157.465603 right
3 0 9381 9628 2.47 -145.699818 right


start end duration_s angle_deg direction
wb_id turn_id
1 0 3833 3935 1.01 81.339600 left
1 3934 4172 2.37 -122.848641 right
2 4277 4452 1.74 111.712823 left
3 4534 4789 2.54 -178.884837 right
2 0 7777 8204 4.26 -153.358653 right
1 8405 8552 1.46 68.104292 left
3 0 9381 9714 3.32 -166.100777 right
5 0 13108 13245 1.36 -52.132837 right
1 13274 13443 1.68 -61.836477 right


Which of the two approaches is better, depends on multiple factors. If the global frame should be used generally, further investigation is needed.
