GSD Iluz#
This example shows how to use the GSD Iluz algorithm and some examples on how the results compare to the original matlab implementation.
We start by defining some helpers for plotting and loading the data. You can skip them for now and jump directly to “Performance on a single lab trial”, if you just want to see how to apply the algorithm.
Plotting Helper#
We define a helper function to plot the results of the algorithm. Just ignore this function for now.
import matplotlib.pyplot as plt
def plot_gsd_outputs(data, **kwargs):
fig, ax = plt.subplots()
ax.plot(data["acc_x"].to_numpy(), label="acc_x")
color_cycle = iter(plt.rcParams["axes.prop_cycle"])
y_max = 1.1
plot_props = [
{"data": v, "label": k, "alpha": 0.2, "ymax": (y_max := y_max - 0.1), "color": next(color_cycle)["color"]}
for k, v in kwargs.items()
]
for props in plot_props:
for gsd in props.pop("data").itertuples(index=False):
ax.axvspan(gsd.start, gsd.end, label=props.pop("label", None), **props)
ax.legend()
return fig, ax
Loading some example data#
Note
More infos about data loading can be found in the data loading example.
We load example data from the lab dataset together with the INDIP reference system. We will use the INDIP “WB” output as ground truth. Note, that the “WB” (Walking Bout) output is further processed than a normal “Gait Sequence”. This means we expect Gait Sequences to contain some false positives compared to the “WB” output. However, a good gait sequence detection algorithm should have high sensitivity (i.e. contain all the “WBs” of the reference system).
import json
import pandas as pd
from mobgap import PACKAGE_ROOT
from mobgap.data import LabExampleDataset
lab_example_data = LabExampleDataset(reference_system="INDIP")
def load_matlab_output(datapoint):
p = datapoint.group_label
with (
PACKAGE_ROOT.parent
/ f"example_data/original_results/gsd_iluz/lab/{p.cohort}/{p.participant_id}/GSDA_Output.json"
).open() as f:
original_results = json.load(f)["GSDA_Output"][p.time_measure][p.test][p.trial]["SU"]["LowerBack"]["GSD"]
if not isinstance(original_results, list):
original_results = [original_results]
return (
pd.DataFrame.from_records(original_results).rename(
{"GaitSequence_Start": "start", "GaitSequence_End": "end"}, axis=1
)[["start", "end"]]
* datapoint.sampling_rate_hz
)
Performance on a single lab trial#
Below we apply the algorithm to a lab trail, where we only expect a single gait sequence.
from mobgap.gsd import GsdIluz
short_trial = lab_example_data.get_subset(cohort="HA", participant_id="001", test="Test5", trial="Trial2")
short_trial_matlab_output = load_matlab_output(short_trial)
short_trial_reference_parameters = short_trial.reference_parameters_.wb_list
short_trial_output = GsdIluz().detect(short_trial.data["LowerBack"], sampling_rate_hz=short_trial.sampling_rate_hz)
print("Reference Parameters:\n\n", short_trial_reference_parameters)
print("\nMatlab Output:\n\n", short_trial_matlab_output)
print("\nPython Output:\n\n", short_trial_output.gs_list_)
Reference Parameters:
start end ... avg_stride_length_m termination_reason
wb_id ...
1 392 862 ... 1.211187 Pause
[1 rows x 9 columns]
Matlab Output:
start end
0 299.0 1049.0
Python Output:
start end
0 150 1052

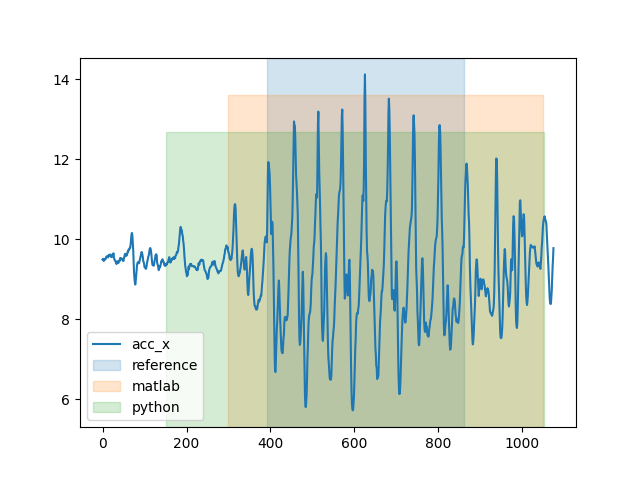

When we plot the output, we can see that the python version is a little more sensitive than the matlab version. It includes a section of the signal before the region classified as WB by the reference system. Both algorithm implementations produce a gait sequence that extends beyond the end of the reference system.
fig, ax = plot_gsd_outputs(
short_trial.data["LowerBack"],
reference=short_trial_reference_parameters,
matlab=short_trial_matlab_output,
python=short_trial_output.gs_list_,
)
fig.show()
Performance on a longer lab trial#
Below we apply the algorithm to a lab trail that contains activities of daily living. This is a more challenging scenario, as we expect multiple gait sequences.
long_trial = lab_example_data.get_subset(cohort="MS", participant_id="001", test="Test11", trial="Trial1")
long_trial_matlab_output = load_matlab_output(long_trial)
long_trial_reference_parameters = long_trial.reference_parameters_.wb_list
long_trial_output = GsdIluz().detect(long_trial.data["LowerBack"], sampling_rate_hz=long_trial.sampling_rate_hz)
print("Reference Parameters:\n\n", long_trial_reference_parameters)
print("\nMatlab Output:\n\n", long_trial_matlab_output)
print("\nPython Output:\n\n", long_trial_output.gs_list_)
Reference Parameters:
start end ... avg_stride_length_m termination_reason
wb_id ...
1 1019 1768 ... 0.942678 Pause
2 4534 5549 ... 0.483923 Pause
3 9665 10569 ... 0.506458 Pause
4 12337 14633 ... 0.803933 Pause
5 20151 20982 ... 0.507484 Pause
6 21378 22129 ... 0.599360 Pause
[6 rows x 9 columns]
Matlab Output:
start end
0 899.0 1799.0
1 13049.0 13949.0
2 14099.0 14849.0
3 20249.0 21149.0
4 21299.0 22349.0
Python Output:
start end
0 750 1652
2 4650 6152
5 12900 14852
6 20100 21152
7 21300 22502

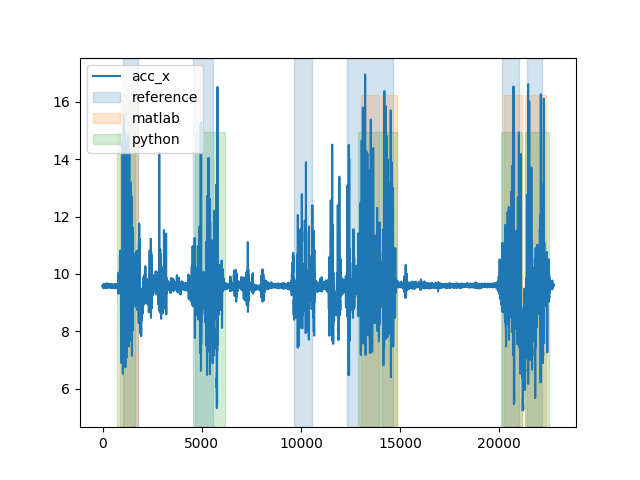

When we plot the output, we can see again that the python version is more sensitive. It detects longer gait sequences and even one entire gait sequence that is not detected by the matlab version.
fig, _ = plot_gsd_outputs(
long_trial.data["LowerBack"],
reference=long_trial_reference_parameters,
matlab=long_trial_matlab_output,
python=long_trial_output.gs_list_,
)
fig.show()
Changing the parameters#
The Python version aims to expose all relevant parameters of the algorithm.
The GsdlIluz algorithm has a lot of parameters that can be modified.
Finding a combination of parameters that works well for all scenarios is difficult.
Below we show, just how to modify them in general.

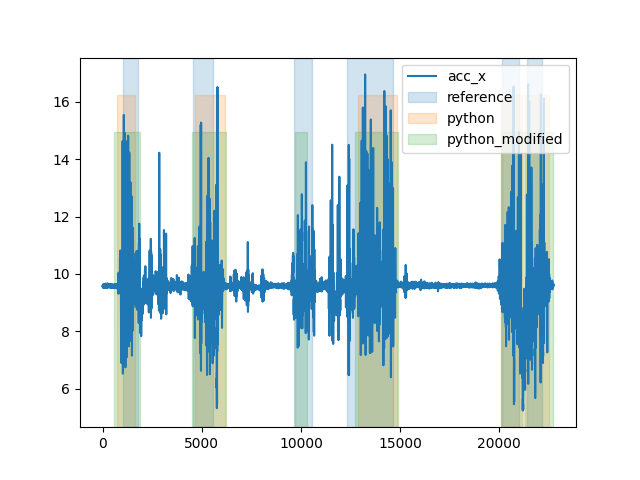

We modify one of the basic parameters, the window length. This can effect all parts of the output. In this case, we can see that all GSDs are slightly longer and that we now detect a gait sequence that was not detected before.
long_trial_output_modified = GsdIluz(window_length_s=5, window_overlap=0.8).detect(
long_trial.data["LowerBack"], sampling_rate_hz=long_trial.sampling_rate_hz
)
print("Reference Parameters:\n\n", long_trial_reference_parameters)
print("\nPython Output:\n\n", long_trial_output.gs_list_)
print("\nPython Output Modified:\n\n", long_trial_output_modified.gs_list_)
fig, _ = plot_gsd_outputs(
long_trial.data["LowerBack"],
reference=long_trial_reference_parameters,
python=long_trial_output.gs_list_,
python_modified=long_trial_output_modified.gs_list_,
)
fig.show()
Reference Parameters:
start end ... avg_stride_length_m termination_reason
wb_id ...
1 1019 1768 ... 0.942678 Pause
2 4534 5549 ... 0.483923 Pause
3 9665 10569 ... 0.506458 Pause
4 12337 14633 ... 0.803933 Pause
5 20151 20982 ... 0.507484 Pause
6 21378 22129 ... 0.599360 Pause
[6 rows x 9 columns]
Python Output:
start end
0 750 1652
2 4650 6152
5 12900 14852
6 20100 21152
7 21300 22502
Python Output Modified:
start end
0 600 1902
1 4500 6202
2 9700 10302
3 12700 14902
4 20100 22702
Validation of algorithm output against a reference#
Let’s quantify how the Python output compares to the reference labels.
To do this, we use the categorize_intervals function to identify overlappting regions between the detected gait
sequences and the reference gait sequences.
from mobgap.gsd.evaluation import categorize_intervals
categorized_intervals = categorize_intervals(
gsd_list_detected=long_trial_output.gs_list_,
gsd_list_reference=long_trial_reference_parameters,
n_overall_samples=len(long_trial.data["LowerBack"]),
)
The function returns a DataFrame containing start and end index of the resulting matched intervals together with
a match_type column that contains the type of match for each interval, i.e. tp for true positive, fp for false
positive, and fn for false negative.
These intervals can not be interpreted as gait sequences, but are rather subsequences of the detected gait sequences
categorizing correctly detected samples (tp), falsely detected samples (fp), and samples from the reference gsd
list that were not detected (fn).
Note that the true negative intervals are not explicitly calculated, but are inferred from the other intervals
and the total length of the data, as everything between them is considered as true negative.
print("Matched Intervals:\n\n", categorized_intervals)
Matched Intervals:
start end match_type
0 0 750 tn
1 750 1019 fp
2 1019 1652 tp
3 1652 1768 fn
4 1768 4534 tn
5 4534 4650 fn
6 4650 5549 tp
7 5549 6152 fp
8 6152 9665 tn
9 9665 10569 fn
10 10569 12337 tn
11 12337 12900 fn
12 12900 14633 tp
13 14633 14852 fp
14 14852 20100 tn
15 20100 20151 fp
16 20151 20982 tp
17 20982 21152 fp
18 21152 21300 tn
19 21300 21378 fp
20 21378 22129 tp
21 22129 22502 fp
22 22502 22727 tn
Based on the tp, fp, and fn intervals, common performance metrics such as F1 score, precision,
and recall can be calculated.
For this purpose, the calculate_matched_gsd_performance_metrics function can be used.
It returns a dictionary containing the metrics for the specified categorized intervals DataFrame.
from mobgap.gsd.evaluation import calculate_matched_gsd_performance_metrics
matched_metrics_dict = calculate_matched_gsd_performance_metrics(categorized_intervals)
print("Matched Performance Metrics:\n\n", matched_metrics_dict)
Matched Performance Metrics:
{'tp_samples': 4852, 'fp_samples': 1770, 'fn_samples': 1703, 'precision': 0.7327091513138024, 'recall': 0.7401983218916858, 'f1_score': 0.7364346968202169, 'tn_samples': 14425, 'specificity': 0.8907070083359061, 'accuracy': 0.8473406593406594, 'npv': 0.8944072420634921}
Furthermore, there is a range of performance metrics that only require the overall amount of gait detected.
These metrics can be calculated using the calculate_unmatched_gsd_performance_metrics
function.
It requires specifying the sampling frequency of the recorded data (to calculate the duration errors in seconds)
and returns a dictionary containing all metrics for the specified detected and reference gait sequences.
from mobgap.gsd.evaluation import calculate_unmatched_gsd_performance_metrics
unmatched_metrics_dict = calculate_unmatched_gsd_performance_metrics(
gsd_list_detected=long_trial_output.gs_list_,
gsd_list_reference=long_trial_reference_parameters,
sampling_rate_hz=long_trial.sampling_rate_hz,
)
print("Unmatched Performance Metrics:\n\n", unmatched_metrics_dict)
Unmatched Performance Metrics:
{'reference_gs_duration_s': 65.52, 'detected_gs_duration_s': 66.15, 'gs_duration_error_s': 0.6300000000000097, 'gs_relative_duration_error': 0.009615384615384763, 'gs_absolute_duration_error_s': 0.6300000000000097, 'gs_absolute_relative_duration_error': 0.009615384615384763, 'gs_absolute_relative_duration_error_log': 0.009569451016150893, 'detected_num_gs': 5, 'reference_num_gs': 6, 'num_gs_error': -1, 'num_gs_relative_error': -0.16666666666666666, 'num_gs_absolute_error': 1, 'num_gs_absolute_relative_error': 0.16666666666666666, 'num_gs_absolute_relative_error_log': 0.15415067982725836}
Another useful function for evaluation is find_matches_with_min_overlap.
It returns all intervals of the detected gait sequences that overlap with the reference gait sequences by at least a
given amount.
We can see that with an overlap threshold of 0.7 (70%), three of the five detected gait sequences are considered as
matches with the reference gait sequences.
The remaining ones either contain too many false positive and/or false negative samples.
This information can then be used further to compare aggregated parameters from within the respective gait sequences.
from mobgap.gsd.evaluation import find_matches_with_min_overlap
matches = find_matches_with_min_overlap(
gsd_list_detected=long_trial_output.gs_list_,
gsd_list_reference=long_trial_reference_parameters,
overlap_threshold=0.7,
)
print("Matches:\n\n", matches)
Matches:
start end
id
0 750 1652
5 12900 14852
6 20100 21152
Total running time of the script: (0 minutes 5.229 seconds)
Estimated memory usage: 66 MB
